# Showing a difference in mean between two groups, take 2

A couple of years ago, I wrote about the paradoxical difficulty of visualising a difference in means between two groups, while showing both the data and some uncertainty interval. I still feel like many ills in science come from our inability to interpret a simple comparison of means. Anything with more than two groups or a predictor that isn’t categorical makes things worse, of course. It doesn’t take much to overwhelm the intuition.

My suggestion at the time was something like this — either a panel that shows the data an another panel with coefficients and uncertainty intervals; or a plot that shows the with lines that represent the magnitude of the difference at the upper and lower limit of the uncertainty interval.

Alternative 1 (left), with separate panels for data and coefficient estimates, and alternative 2 (right), with confidence limits for the difference shown as vertical lines. For details, see the old post about these graphs.

Here is the fake data and linear model we will plot. If you want to follow along, the whole code is on GitHub. Group 0 should have a mean of 4, and the difference between groups should be two, and as the graphs above show, our linear model is not too far off from these numbers.

library(broom)

data <- data.frame(group = rep(0:1, 20))
data\$response <- 4 + data\$group * 2 + rnorm(20)

model <- lm(response ~ factor(group), data = data)
result <- tidy(model)

Since the last post, a colleague has told me about the Gardner-Altman plot. In a paper arguing that confidence intervals should be used to show the main result of studies, rather than p-values, Gardner & Altman (1986) introduced plots for simultaneously showing confidence intervals and data.

Their Figure 1 shows (hypothetical) systolic blood pressure data for a group of diabetic and non-diabetic people. The left panel is a dot plot for each group. The right panel is a one-dimensional plot (with a different scale than the right panel; zero is centred on the mean of one of the groups), showing the difference between the groups and a confidence interval as a point with error bars.

There are functions for making this kind of plot (and several more complex alternatives for paired comparisons and analyses of variance) in the R package dabestr from Ho et al. (2019). An example with our fake data looks like this:

Alternative 3: Gardner-Altman plot with bootstrap confidence interval.

library(dabestr)

bootstrap <- dabest(data,
group,
response,
idx = c("0", "1"),
paired = FALSE)

bootstrap_diff <- mean_diff(bootstrap)

plot(bootstrap_diff)

While this plot is neat, I think it is a little too busy — I’m not sure that the double horizontal lines between the panels or the shaded density for the bootstrap confidence interval add much. I’d also like to use other inference methods than bootstrapping. I like how the scale of the right panel has the same unit as the left panel, but is offset so the zero is at the mean of one of the groups.

Here is my attempt at making a minimalistic version:

Alternative 4: Simplified Garner-Altman plot.

This piece of code first makes the left panel of data using ggbeeswarm (which I think looks nicer than the jittering I used in the first two alternatives), then the right panel with the estimate and approximate confidence intervals of plus/minus two standard errors of the mean), adjusts the scale, and combines the panels with patchwork.

library(ggbeeswarm)
library(ggplot2
library(patchwork)

ymin <- min(data\$response)
ymax <- max(data\$response)

plot_points_ga <- ggplot() +
geom_quasirandom(aes(x = factor(group), y = response),
data = data) +
xlab("Group") +
ylab("Response") +
theme_bw() +
scale_y_continuous(limits = c(ymin, ymax))

height_of_plot <- ymax-ymin

group0_fraction <- (coef(model)[1] - ymin)/height_of_plot

diff_min <- - height_of_plot * group0_fraction

diff_max <- (1 - group0_fraction) * height_of_plot

plot_difference_ga <- ggplot() +
geom_pointrange(aes(x = term, y = estimate,
ymin = estimate - 2 * std.error,
ymax = estimate + 2 * std.error),
data = result[2,]) +
scale_y_continuous(limits = c(diff_min, diff_max)) +
ylab("Difference") +
xlab("Comparison") +
theme_bw()

(plot_points_ga | plot_difference_ga) +
plot_layout(widths = c(0.75, 0.25))

Literature

Gardner, M. J., & Altman, D. G. (1986). Confidence intervals rather than P values: estimation rather than hypothesis testing. British Medical Journal

Ho, J., Tumkaya, T., Aryal, S., Choi, H., & Claridge-Chang, A. (2019). Moving beyond P values: data analysis with estimation graphics. Nature methods.

# A slightly different introduction to R, part I

Note in Swedish: Jag hoppas läsaren ursäktar att jag skriver på engelska då och då.

This will be a brief introduction to using the statistics software R for biologists who want to do some of their data analysis in R. There are plenty of introductions to R (see here and here, for example; these are just a couple of intros that make some good points), but I’d like to show a few things that I wish somebody would’ve told me when I started learning R. As always with R, if you need any help, just type a question into a search engine. Often someone else asked first.

Caveat lector: I don’t pretend to be an expert, just another user. Since R speaks to you through a text based interface, some code will be involved — but if you really want to learn computer programming, R is probably not the best place to start, and I’m certainly not the best teacher. However, while using R, you will naturally want to write scripts, and practice a humble form of literary programming.

### 1. Why R?

What? R is an environment for computation and graphics. R is free software, meaning that you can distribute, copy, and modify it. It is development is a big collaborative effort. The name referes to the fact that R started as a free implementation of S.

Why? R is very common among scientists (at least biologists and statisticians). It is a full-fledged statistiscs software, and it is easily extensible, meaning that there are tons of useful (as well as less useful) packages for solving different problems. This introduction will start with base R, but will liberally use a bunch of great package.

R is usually not the most efficient way to do things in terms of computation time. If you have huge datasets (i.e. things that don’t fit in the RAM of your computer) you might have to turn to something else. R is, however, supremely flexible, and often very convenient. It takes commands from a command prompt or a script file, and outputs text, files, and graphics when told to.

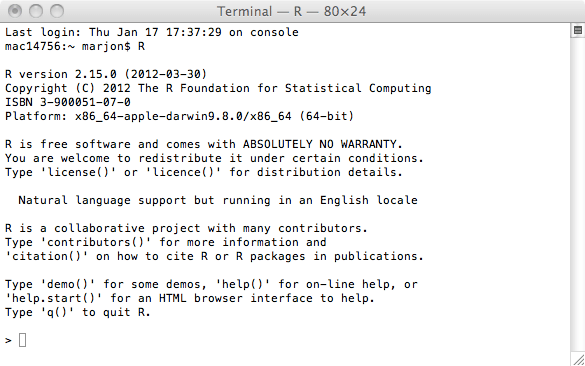

R comes with automated installers for lots of platforms, and installation is pretty easy. If you want a nice graphical interface, I suggest Rstudio. R comes with its own graphical user interface, but I find it annoying. I usually work with R in a terminal window, like this: At the shell of a unix terminal, just write ”R”. A legal disclaimer and a friendly ”>” greets you. You are now interacting with R.

If you use one of the graphical interfaces, you will see the same things, but also a few other windows for editing script files, showing graphs etc.

### 2. Getting data into R

Say you have your data in a spreadsheet file. How do you get it into R? The easiest way is probably to export you spreadsheet tables to comma separated values (csv). (Just choose Save as… and select csv format in your favourite spreadsheet software). For this example, I use some made up data stored in data.csv. The read.csv() function reads csv files (duh). read.table() will read any tabulated data.

If you want to play along with the instructions, you can download comb_gnome_data.csv. If you work with the default R interface or R on the command line, you will have to put the file in your R working directory. In the R graphical interface, you can set and get the working directory under Misc (Mac) or File (Windows) in the menu bar.

If you work with Rstudio, you can press the Import dataset button to open an import guide, and then skip over most of this section. Rstudio is nice.

You run a function in R by writing its name followed by parentheses. Any parameters you pass to the function will be given in the parenthesis in a parameter=”value” format, like so.

The arguments can either be given with their proper name, or in the default order. The arguments and output of any function are described in the help file — to read it, enter  a question mark and the name of the function:

Above, we’re telling R to run read.csv() with the file ”comb_gnome_data.csv”, and the option header set to true. The arrow ”<-" means assignment, telling R to save the output of read.csv() to the variable called "data". You can recall it by simply giving the name of the variable, and R will print the whole table.

data

If your table is huge, this might not be helpful. Use head() and tail() to see the beginning and end of the table. dim() tells you how many rows and colums you have. This table format is called a data.frame, and is the basis of many operations in R.

group treatment mass0  mass10   mass25    mass50    id
1 green control 180.9564 217.1795 285.5527  450.6075  1
2 green pixies  140.1157 279.0560 784.3293  4390.4606 2
3 green control 119.0070 125.7097 136.4782  156.5143  3
4 green pixies  220.7838 366.5834 784.2983  2786.0915 4
5 green pixies  210.7911 430.9156 1259.5120 7525.7961 5
6 green control 200.7478 249.3120 345.0496  593.0786  6

These data are of course fictive — imagine they are measurements of mass at different time points (0, 10, 25 and 50 imaginary time units) of pink and green comb gnomes in the presence or absence of pixietails.

dim(data)
[1] 99 7

In this case, we have 99 rows and 7 columns.

Before reading an unkown file, it is a good idea to inspect it and make sure things are in order. Also, if you get strange error messages from read.csv() or read.table(), it’s usually something easy, like using the wrong separator. Open it in your favourite text editor and check what the separator is (could be comma, tab, a space, or a semicolon, perhaps). R will also assume that all rows have an equal number of entries, for example.

A special note about empty cells: R has a special code — NA — for missing values. Sometimes you have another symbol for missing values, such as ”-”. You can tell R this with the na.strings parameter.

Here, the data file uses tab as separator, has no header, uses comma as decimal separator (hello Swedish users), and ”-”, ”NA” or ”omgwtf” for missing values.

A final thing on entering data: R uses different formats for numbers, strings of characters, and factors (think: categories). R will recognise your numbers as numbers, but if you enter text, R will default to factors. Sometimes, say when you use a sample id that contains letters, you’d prefer text columns to be ”character”. To do that, give the parameter stringsAsFactors=F. If you don’t get this right when entering the file, don’t worry, you can change type later.

(For more details, see a comprehensive input manual here.)

### 3. Getting, setting and subsetting

So you have entered your data into a data frame and had a look at it with dim(), and head(). You will probably want do display some more.

Too look at one of the columns of a data frame, you write the name after a \$ sign, and R will print it. head() works here as well, printing only the beginning of this particular column.

data\$id

To summarise the values, getting a few descriptive statistics from a numeric column, use summary().

summary(data\$mass0)
Min. 1st Qu. Median  Mean  3rd Qu. Max.
11.93 87.43   130.80 128.10 168.10 240.00

table() will count the values, and is useful for categories (i.e. factors):

table(data\$group)
green pink
50    49

When you want to calculate stuff, just write a formula. You can use variable names, and if the name refers to a whole column of a data frame, R will either perform the calculation on every value, or (for certain functions that operate on vectors) use the entire column for some calculation. The output will be printed, or can be assigned to a variable. The square of the mass of each individual at time zero:

data\$mass0^2

There are a bunch of useful functions that operate on columns (or in general vectors) — for example sum, mean, median, and standard deviation:

sum(data\$mass0)
mean(data\$mass0)
median(data\$mass0)
sd(data\$mass0)

To change the value of a column, or add a column, you can simply assign to it with ”<-", and perform any algebraic operation. Here, we form the difference between mass at time 50 and mass at time 0 and call it "growth".

data\$growth <- data\$mass50 – data\$mass0

There are several ways to take subsets of you data. First, the bracket operator treats your data frame as a table, getting cells by two indices: data[1,2] will give you the cell in the first row, and the second column.

The second column:

data[,2]

The third row:

data[3,]

The third row of the second column:

data[3,2]

c() is for concatenation. It will give you a vector of several values, and it can be used for example when getting multiple columns:

Column 1 and 3:

data[, c(1,3)]

The columns called "mass0" and "id":

data[, c("mass0", "id")]

Usually, it is a good idea to refer to columns by name when possible. If you refer to them by numbers, and later add a column to the data file, your code might do something different than you expect.

You can also use the subset function. The first argument is the name of your data frame, and the second some logical condition for the rows you want. Here, for example, we select all rows where mass at time 0 is strictly below 10.

subset(data, mass0 < 10)

You can combine several conditions with "&" (and) and "|" (or):

subset(data, mass0 < 100 & mass50 > 500)

group treatment mass0    mass10   mass25   mass50    id
50 green pixies    80.52379 127.4023 253.5461 798.3436  50
55 pink  pixies    95.36059 142.0190 258.1147 698.6453  55
72 pink  pixies    87.72898 139.0989 277.7121 879.1167  72
77 pink  pixies    97.04335 145.6220 267.6816 738.3653  77
82 pink  pixies    87.12299 142.4427 297.7841 1017.8186 82
97 pink  pixies    79.43528 115.0147 200.3843 505.4915  97

That was a quick introduction to handling data frames. In the next installment, we’ll make some graphs. R has some really nice plotting capabilites. Once we’ve gotten the numbers into a data frame, plotting them turns out to be quite easy.

Please feel free to post questions and comments if you have any. Cheers!
